SYBER-AER

SBR Wastewater Technologies, Inc. is proud to present the FT SERIES SYBR-AER advanced wastewater treatment system.


FT SERIES TREATMENT SYSTEMS

  • Patented Advanced SBR Technology
  • Up to 800 Gallon Per Day Capacity
  • Pre-assembled & Pre-wired
  • check
    Treatment & UV Disinfection In A Single Compact Tank
  • check
    Pump Discharge Eliminates Need For Lift Stations
  • check
    *Average Effluent Total Nitrogen: 14.67 mg/L (70.31% Reduction)
  • check
    Pre-programmed Controls With Battery Back-up
  • check
    Ships With 100' of 12 Conductor Direct Burial Wire
  • check
    Robust Design Requires Minimal Ongoing Maintenance
  • check
    Suitable For Residential Or Commercial Applications
  • check

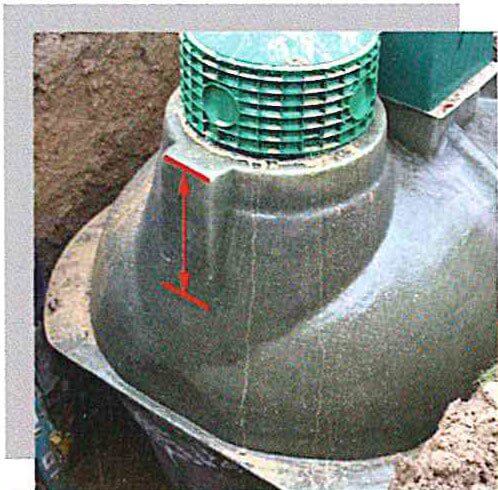

    Built-in Uplift Restraint
  • check
    Quick Disconnects On All Internal Components

Designed with both the installer and service provider in mind, the FT-SERIES provides a cost effective and time saving solution for residential, commercial, and high strength waste applications. Best of all, the design is based upon robust Sequential Batch Reactor (SBR) technology. The FT-Series can be purchased with or without UV disinfection which allows the treatment process and disinfection to occur in a single compact tank. The system ships pre-assembled and is pre-wired ready for installation saving valuable time onsite.

To ensure proper performance, the FT-SERIES package also includes a pre-programmed control panel featuring an internal logic module with battery backup in case of power outages. All components have been designed to be easily serviced and utilize quick-release connectors for any part that requires removal for inspection or maintenance. The FT-SERIES is an ANSI/NSF Standard 40 approved system.

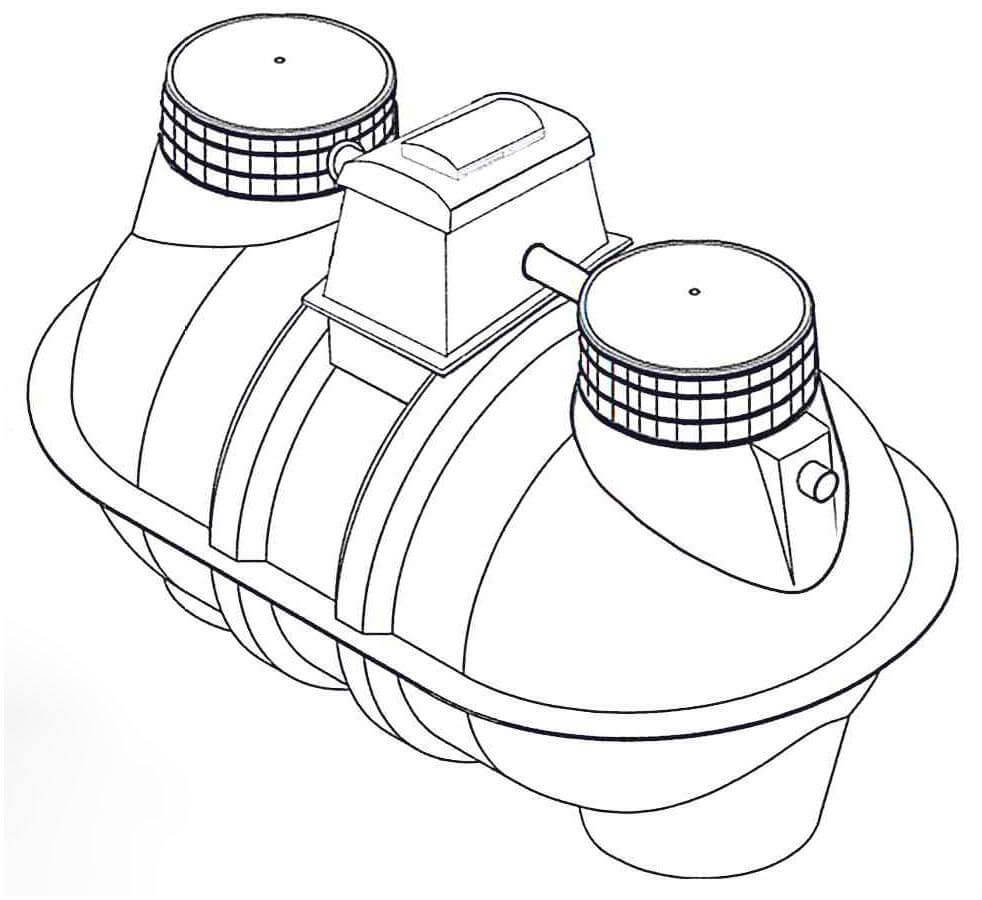

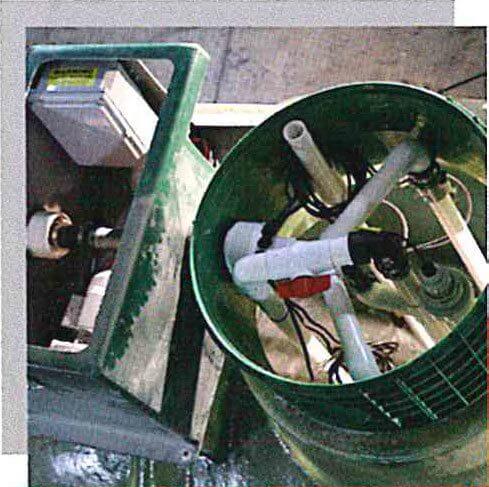

MULTIPLE INLET OPTIONS ELIMINATE NEED FOR ADDITIONAL RISERS

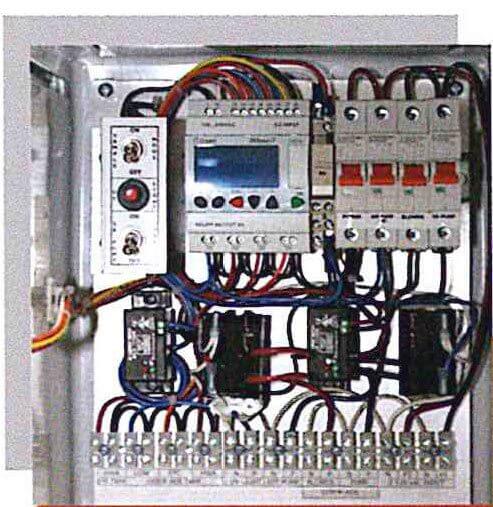

PRE-PROGRAMMED CONTROL WITH BATTERY BACKUP, EVENT COUNTERS & FLOAT MONITORING

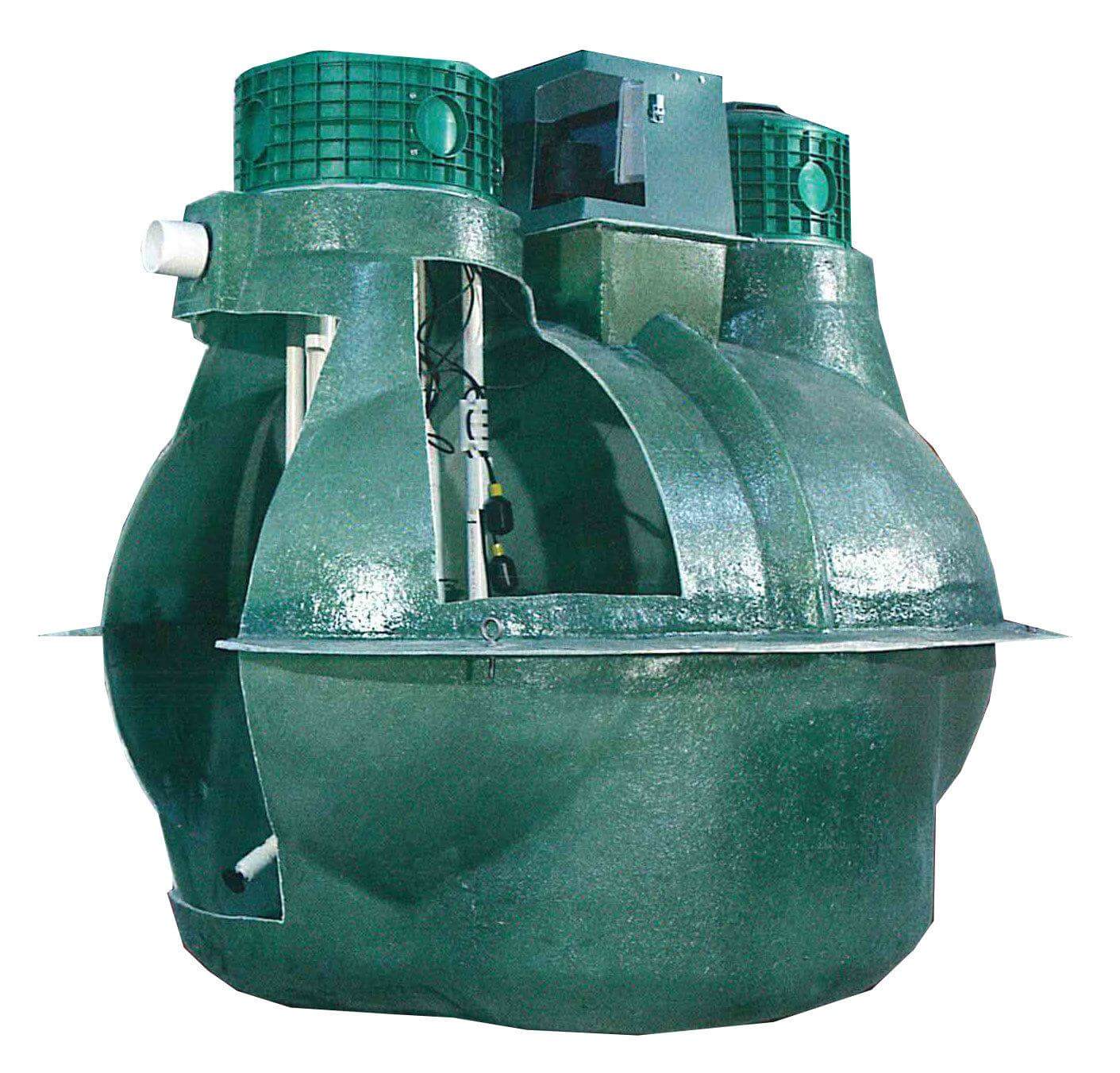

SYSTEM SHIPS PRE-ASSEMBLED & PRE-WIRED

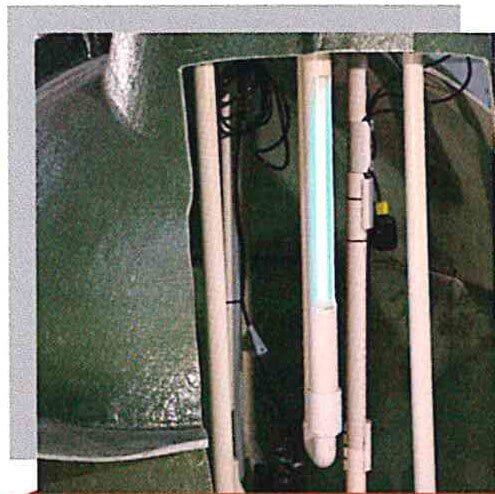

OPTIONAL INTERNAL UV DISINFECTION SYSTEM (OPERATES 4 HOURS DAILY TO MAXIMIZE BULB LIFE)

PERFORMANCE: ANSI/NSF Standard 40 Testing

  • Average Influent CBOD5: 200 mg/L
  • Average Effluent CBOD5: 6 mg/L (97% Reduction)
  • Average Influent TSS: 227 mg/L
  • check
    Average Effluent TSS: 8 mg/L (96.5% Reduction)
  • check
    *Average Influent Total Nitrogen: 49.42 mg/L
  • check
    *Average Effluent Total Nitrogen: 14.67 mg/L (70.31% Reduction)
  • check
    *Note: Nitrogen study performed as a supplement to AANSI/NSF Standard 40 Testing. Samples were taken from 6/12/98-9/18/98. Technology report available upon request.
